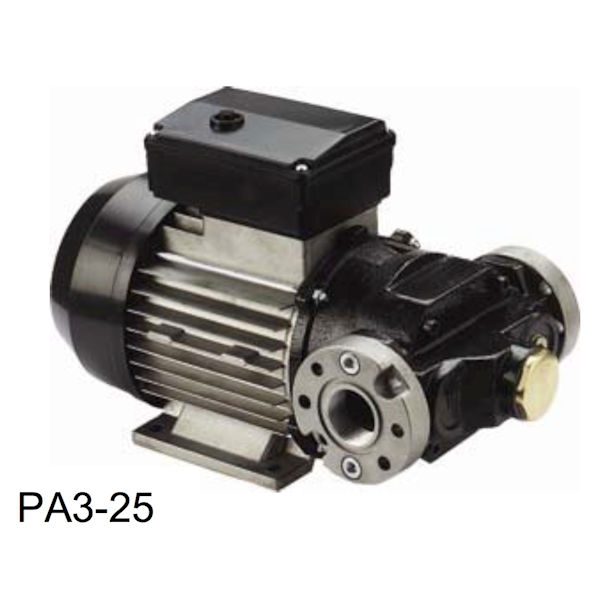

PA3-25 – Hi Viscosity Pump – 110V / 60 Hz or 230V / 50 Hz

Description

The PA3-25 Pump features the following:

• Flow:  8 GPM for 110V / 60 Hz and 7 GPM for 230V / 50Hz
• Use:   Transfer of diesel oil (Not for use with Gasoline!)
• Type:  Rotary electric vane pump -constant fuel flow (non-pulsating)
• Start-up:  Self-priming
• Safety:  Self ventilating induction motor with IP 55 protection – Thermal overload protection
• By-pass Valve:  Integrated into the pump body (adjustable)
• Housing:  Cast-iron, treated against corrosion and paint-finished
• Rotor:  Sintered steel
• Ports:  1” BSPP to 1” NPT adapters including seal rings provided
• Hose/Plumbing (Required to achieve rated flow rate):  Minimum Suction Line: 1″ – Minimum Discharge Line: 1″
• Strainer:  No built in strainer (external strainer available)
